2.4GHz nRF24L01 PA LNA long range rf transceiver module

Posted byShenzhen Horizon Resource Co., LTDPosted inBLE modules
  • Model No.# BT01-2
  • Chipset solution nRF24L01
  • Antenna Type PCB or IPEX
  • Voltage 2.0V-3.6V

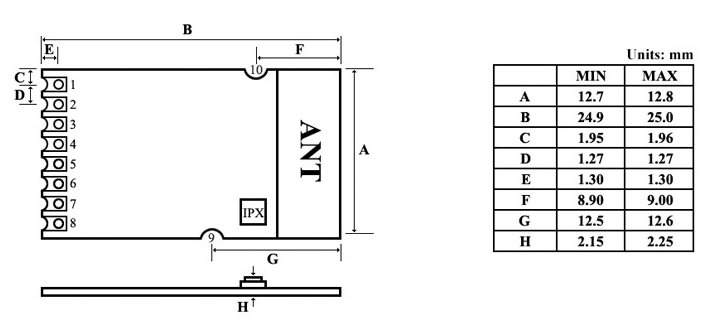

  • Dimension 25(L)×12.8(W)×1.27(H) mm
  • Interface SPI

Application

Please contact us for much more details.
