ESP8266 Smart City IoT Ap WIFI Camera Module

Feature

◆Model No.# HS-04-W4-E103

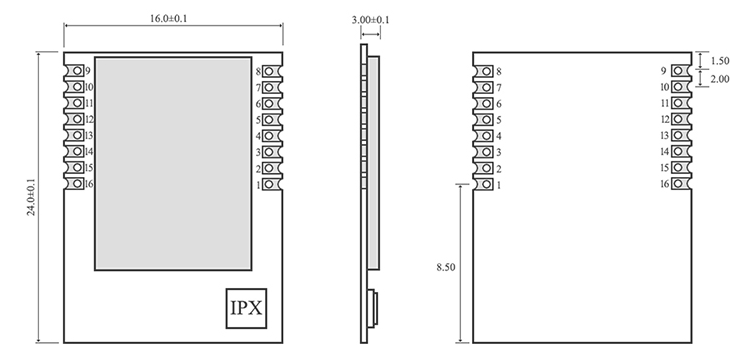

◆Size: 24(L)x16(W)x3(H)mm
◆802.11 b/g/n
◆ESP8266EX chipset
◆Voltage: 3-3.6V DC
◆Distance: 100m

General parameters
Antenna type	PCB/IPX	50Ω characteristic impedance
Operating temperature	-40 ~ +85℃	–
Operating humidity	10% ~ 90%	Relative humidity,No condensation
Storage temperature	-40 ~ +125℃	–
Size	16 * 24 mm	–
Connector	2.0 mm	SMD
Operation Range	About 100m	Test condition: clear and open area& 20dBm, height: 2m
Communication interface	UART	–
AT support	Built-in intelligent                processing	Can be read by AT command
Wi-Fi version	802.11 b/g/n	–

Electrical parameters
Frequency Band	2400 – 2483.5 MHz	Adjustable
Supply voltage	3.0 – 3.6 V DC	Notes: the voltage higher than 3.6V is forbidden
Transmitting power	20dBm	100mW

Please contact us for much more details.
