BLE module

• Model No.# BT01-SKB369
• Chipset solution nRF52832
• Antenna Type PCB Antenna
• Voltage 1.7V-3.6V

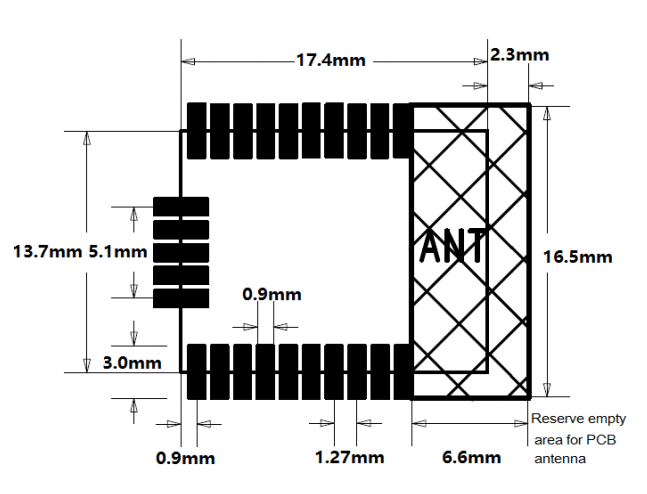

• Dimension 17.4(L)×13.7(W)×1.9(H) mm
• Interface UART/SPI/GPIO/I2C/PWM/NFC/ADC
• Number of I/O 19
• Certification CE/FCC/BQB
• Application 1)Computer peripherals and I/O devices 2) Interactive entertainment devices 3) Remote control 4) BLE beacon/gateway 5) LED lighting control-BLE mesh

Wireless Standards	Bluetooth ® 4.2, ANT
Frequency Range	2400MHz—2483.5MHz
Environment	Operating Temperature: -25℃~75℃ Storage Temperature: -40℃~85℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Try to contact us for the samples.
